Sinn Model 900 DIAPAL

Published by Pierre-Paul Godts

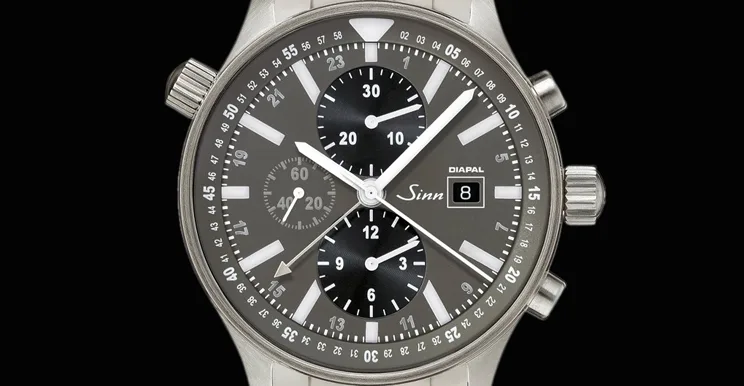

Model 900 DIAPAL

The 900 DIAPAL brings together a number of different SINN technologies which, when combined, yield maximum reliability in terms of time measurement and functionality. Worthy of particular mention here is DIAPAL Technology for a lubrication-free anchor escapement. This is documented by the DIAPAL lettering on the electroplated charcoal grey dial. As a result of this extraordinary technology we offer a five year warranty on the 900 DIAPAL. The large pilot chronograph also features Ar-Dehumidifying Technology for increased functional reliability and freedom from fogging. The sanitised stainless steel case has been hardened with TEGIMENT Technology making it especially scratch resistant.

Sinn_900-DIAPAL_2

Magnetic Field Protection up to 80,000 A/m completes the list of technologies. Thanks to the luminous appliqués, the 900 DIAPAL also offers optimum readability even in the dark. The five conversion and tracking scales on the case back for European and American units are extremely practical.

Sinn_900-DIAPAL_3

Special Characteristics

DIAPAL – the lubrication-free anchor escapement
5 years guarantee
Case madeof stainless steel, satinized
Case made with TEGIMENT Technology and therefore especially scratch-resistant
Ar-Dehumidifying Technology enhances functional reliability and freedom from fogging
Second time zone on a 24-hour basis
Interior pilot’s bezel
Magnetic Field Protection up to 80,000 A/m
Sapphire crystal glass
Five conversion and tracking scales for European and American units
Case back nickel-free
Pressure resistant to 20 bar (= 200 m water depth)
Low pressure resistant

Sinn_900-DIAPAL_4

Technical Specifications

Mechanical Movement

  • SW500
  • Self-winding mechanism
  • 25 bearing jewels
  • 28,800 semi-oscillations per hour
  • Seconds stop function
  • Shock resistant as per DIN 8308
  • Anti-magnetic as per DIN 8309

Case

  • Case made of stainless steel, satinized
  • Sapphire crystal glass in front, anti-reflective on both sides
  • Case back screw-fastened, nickel-free
  • Crown screwable
  • Water-resistant as per DIN 8310
  • Pressure resistant up to 20 bar (= 200 m water depth)
  • Low pressure resistant

Functions

  • Hours, minutes, subsidiary seconds
  • Second time zone on a 24-hour basis
  • Date display
  • Chronograph
  • Interior pilot’s bezel and luminous key mark

SINN Technologies

  • TEGIMENT Technology, therefore especially scratch-resistant
  • DIAPAL Technology, lubrication-free anchor escapement
  • Ar-Dehumidifying Technology enhances functional reliability and freedom from fogging
  • Magnetic Field Protection up to 80,000 A/m
  • Push-pieces with D3-System

Dimensions and Weight

  • Case diameter: 44 mm
  • Band lug width: 22 mm
  • Case thickness: 15.5 mm
  • Weight without strap: 103 gramme

Dial and Hands

  • Charcoal grey electroplated dial
  • Appliqués meticulously attached by hand
  • Appliqués and key mark luminescent
  • Hour and minute hand coated with luminescent colour

Warranty

  • 5 years

Model: 900 DIAPAL (900.013)
Price including leather strap: 3090,00 €
Price including silicone strap: 3235,00 €
Price including solid bracelet: 3365,00 €
